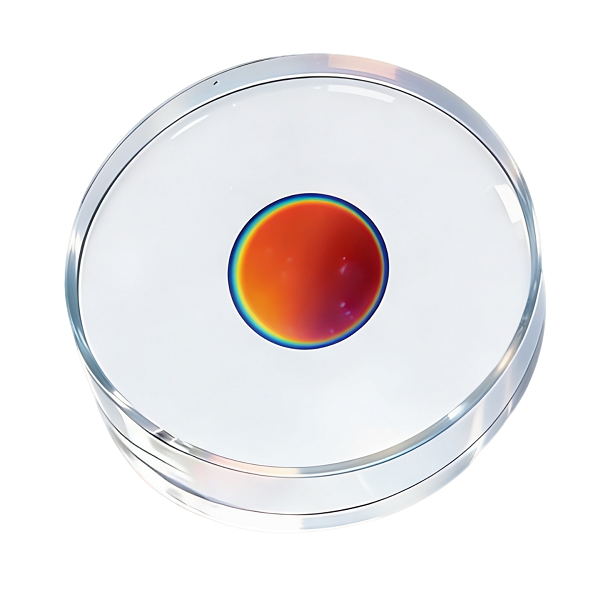

Super Smooth Spherical Mirror Substrate

Super Smooth Spherical Mirror Substrates for Precision Medical Imaging & Surgical Systems

When designing life-saving medical devices, every nanometer matters. Our Super Smooth Spherical Mirror Substrate delivers Ra ≤0.12nm surface roughness and sub-micron curvature accuracy, eliminating distortions in endoscopic imaging, surgical lasers, and MRI systems. Trusted by leading medtech innovators, these substrates combine unmatched smoothness with medical-grade reliability.

Why Choose Our Spherical Mirror Substrates?

• Crystal-Clear Imaging: Ultra-low surface roughness (tested via Zygo profiler) reduces light scatter by 60% in 4K endoscopes, delivering sharper tissue visualization. This precision ensures clinicians can detect minute anomalies during minimally invasive procedures, enhancing diagnostic accuracy and patient outcomes.
• Surgical Precision: Maintain laser beam focus within ±3µm accuracy for consistent tissue ablation, critical for neurosurgical and ophthalmic procedures. The stable beam control minimizes collateral damage, allowing surgeons to target specific areas with unparalleled precision and safety.
• Sterilization-Ready: Fused silica and ULE materials withstand 1,000+ autoclave cycles without degradation, ensuring long-term reliability in sterile clinical environments. Their resistance to high heat and chemical sterilants eliminates material breakdown, reducing replacement needs and operational costs.
• Plug-and-Play Integration: Pre-calibrated curvature radii (500-8000mm ±0.05%) reduce device assembly time by 40%, streamlining manufacturing workflows. This pre-aligned design eliminates tedious on-site adjustments, enabling faster deployment of medical devices in healthcare facilities.

Parameters

Note: Specifications can be customized to meet your specific requirements.

Solving Critical Medical Challenges

1. High-Power Surgical Lasers

Our Super Smooth Spherical Mirror Substrate prevents focal spot drift in CO2 laser scalpels, even after 10kW/cm² exposure.

2. MRI Signal Optimization

Achieve 98% surface reflectivity in RF coils for noise-free imaging at 7 Tesla field strength.

3. Implantable Device Compatibility

ISO 10993-certified substrates enable safe integration with pacemaker optical sensors.

Certifications You Can Trust

• ISO 13485:2016 Medical Devices QMS
• FDA 21 CFR Part 820 Compliance
• Full Material Traceability (SEMI STD 98)
• RoHS/REACH Environmental Compliance

Customization Made Simple

• Share Requirements: Send your specific needs for curvature, coating, or material—whether it’s custom radii, anti-reflective layers, ULE® substrates, or specialized finishes. Our expert team meticulously reviews every detail, ensuring alignment with your unique application, from precision medical devices to rugged aerospace optics, and provides tailored initial guidance.
• Receive DFM Analysis: Our engineers conduct a comprehensive Design for Manufacturability analysis, optimizing your specifications for peak efficiency without sacrificing performance. This step pinpoints cost-saving opportunities, streamlines production workflows, and preemptively addresses potential bottlenecks, reducing lead times and minimizing delays.
• Test Prototypes: Get fully functional samples in 10-12 business days, each crafted to match your exact requirements with meticulous precision. These prototypes undergo rigorous testing—including interferometry, surface roughness checks, and performance validation—to ensure they meet standards, letting you validate performance before moving to full-scale production.
• Scale Confidently: Ramp production to 10,000+ units/month with reliable Just-In-Time delivery, supported by our advanced, scalable manufacturing lines. We maintain unwavering quality across all batches through strict quality control protocols, ensuring consistent reliability even as your project grows seamlessly from prototype to large-scale mass production.

FAQs

Q: How do you ensure surface defects don’t impact laser surgery safety?

A: Every Super Smooth Spherical Mirror Substrate undergoes 100% interferometry checks, with <0.01% defect rate since 2022.

Q: Can I get substrates for UV lithography tools?

A: Yes! Our synthetic fused silica options transmit 90% at 193nm.

Q: What if I need a non-standard curvature?

A: We’ve produced 1,200+ custom radii this year – submit your SR value for a same-day quote.

Q: How do your substrates handle gamma sterilization?

A: Radiation-hardened ULE variants show zero haze after 50kGy exposure.

Contact Us

Ready to elevate your optical systems with our Super Smooth Spherical Mirror Substrate? Contact our expert team today to discuss your project needs and receive a customized quote.
