PRODUCTS

this product only accept processing based on user's drawings
① Dimension: L*L*L=10*10*10-200*200*200mm
② Through hole diameter D=φ4-φ12mm
③ Parallel and vertical between working faces ≤(3 "-2 ')
④ Working area surface shape: better than λ/10
⑤ Work area defect: better than 40/20
⑥ Material: ULE
Note: The specific indicators are not limited to the above scope, and can be customized according to user's needs.
Application:Time-frequency transmission, quantum computing, quantum communication, gravitational wave detection, optical fiber communication

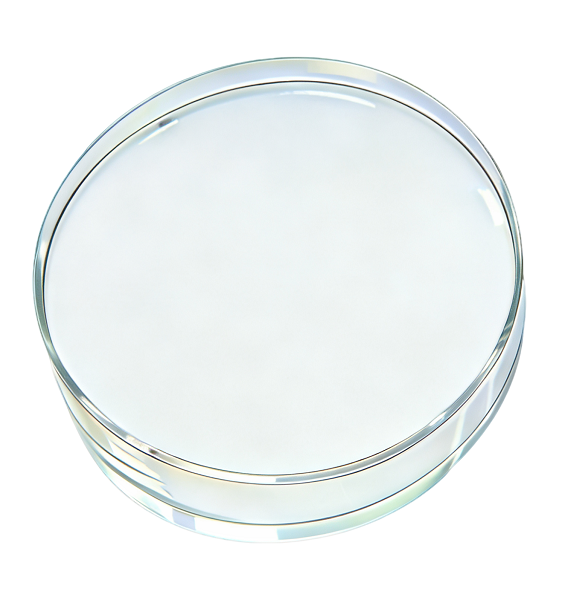

① Dimension D=φ3-φ25mm (tolerance ±0.1),H=3-8mm D:H > 4:1 (tolerance ±0.5)
D=φ26-φ100mm (tolerance ±0.1),H=6-25mm D:H > 5:1 (tolerance ±0.5)
② Coating area size: conventional size D12.7, coating area size 7.5; D25 coating area size 10, other coating area size can be customized
③ Surface accuracy: λ/ 10@632.8nm
④ Parallel error: <10"
⑤ Roughness: Ra0.12nm (Zygo profilometer) test area 173*173um full frequency measurement
⑥Coating requirement: wavelength 420nm-3000nm, reflection ≥99.999%, loss 2-3ppm, transmission 3-5ppm
Back anti-reflection;
⑦ Material: ULE, fused silica, single crystal silicon, sapphire;
Note: The specific indicators are not limited to the above scope, and can be customized according to user's needs.
Application:Laser gyro, high power laser, super stable laser, high precision optical detection

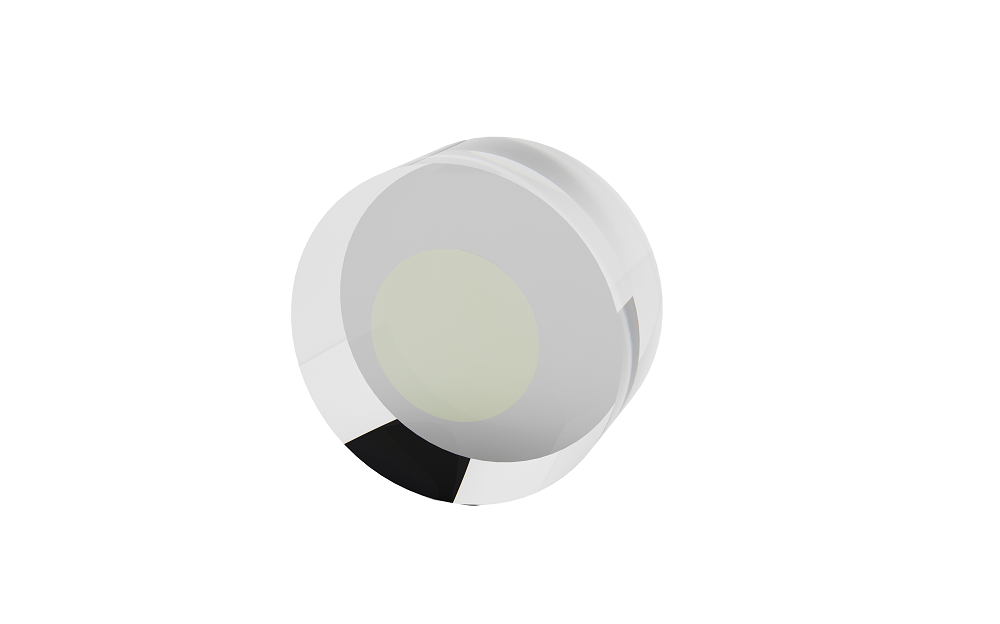

① Dimension D=φ3-φ25mm (tolerance ±0.1),H=3-8mm D:H > 4:1 (tolerance ±0.5)
D=φ26-φ100mm (tolerance ±0.1),H=6-25mm D:H > 5:1 (tolerance ±0.5)
② Coating area size: conventional size D12.7, coating area size 7.5; D25 coating area size 10, other coating area size can be customized
③ Surface accuracy: λ/ 10@632.8nm
④ Parallel error: <10"
⑤ Roughness: Ra0.12nm (Zygo profilometer) test area 173*173um full frequency measurement
⑥Coating requirement: wavelength 420nm-3000nm, reflection ≥99.999%, loss 2-3ppm, transmission 3-5ppm
Back anti-reflection;
⑦ Material: ULE, fused silica, single crystal silicon, sapphire;
Note: The specific indicators are not limited to the above scope, and can be customized according to user's needs.
Application:Laser gyro, high power laser, super stable laser, high precision optical detection
